Boost your catch with TruEcho CHIRP™, Furuno's revolutionary broadband, combining multi-frequency features utilizing multiple transducers!

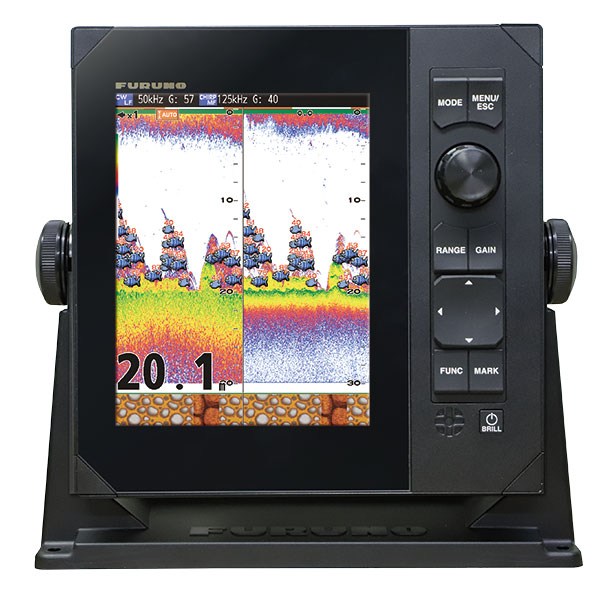

The FCV-800 combines the power of TruEcho CHIRP™ with a host of revolutionary identification technologies to clearly distinguish fish from other structures, such as the seabed or reefs. Additionally, it allows you to use TruEcho CHIRP™ and CW technologies, such as bottom discrimination and ACCU-FISH™, together for added capabilities.

• TruEcho CHIRP™

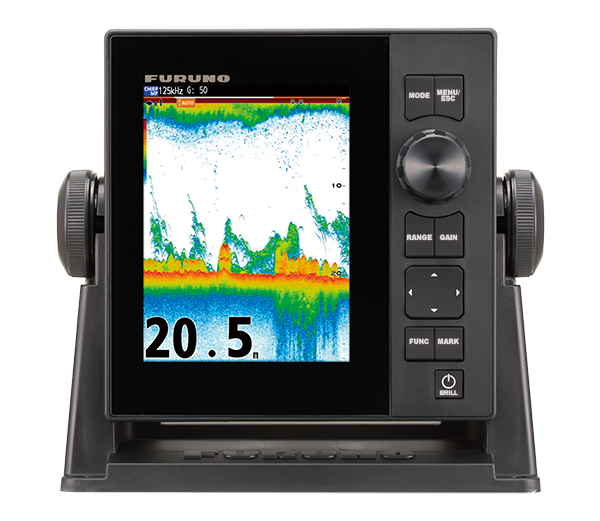

  Traditional CW (Continuous Wave) Fish Finders transmit a signal composed of a single frequency, while CHIRP Fish Finders transmit a linear frequencymodulated signal - a wave with a frequency that increases over time. The FCV-600 and FCV-800 can utilize a broadband transducer to transmit across a spectrum of frequencies, resulting in better target resolution. With Furuno’s TruEcho CHIRP™, you’ll see greater detail and target separation for baitfish, game fish, and structure.

• COMBINE CW & TruEcho CHIRP™ FOR ADDED CAPABILITIES

  By combining CHIRP and traditional CW transducers*, you’ll see crisp CHIRP echoes on the screen while the ACCU-FISH™ and Bottom Discrimination functions from your CW transducer work in the background, overlaying important information on your CHIRP returns. You will be able to see fish targets, fish size assessment, fish depth, and bottom composition.** Up to three frequencies can be saved as preset selections.

  *FCV-800 Single Frequency CHIRP only
  **MF or HF CHIRP

• COLOR EXPANSION

  With Color Range Expansion, the range of identifiable echoes is expanded so you can intuitively identify bottom fish from the seabed. Reefs, structure, and fish near the seabed are shown in slightly separated colors, making it easy to tell structure from fish at a glance.

• NEW Colors

  Sunlight and Yellow color schemes offer enhanced visibility under bright sunlight conditions.

• WIRELESS CONNECTIVITY

  A second display can be installed to show the echoes and nav data from the FCV-600 and FCV-800 via wireless network, so you can monitor the underwater situation from the stern or bow while fishing.

New digital fish finder delivers crystal clear image of fish targets and bottom structure

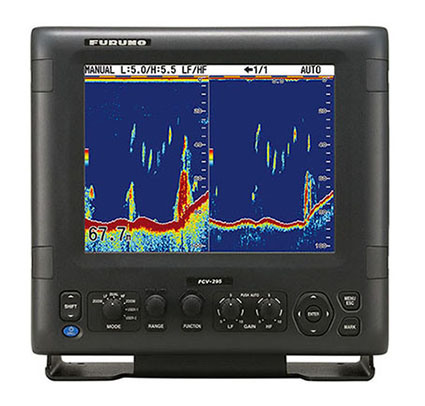

The FCV-295 is a color digital sounder designed for a variety of professional fishing operations. It features a bonded 10.4 LCD display providing superior viewing even in direct sunlight. You can display echoes in 8, 16, or 64 colors, with color assignment dependent on the strength of the returned echo.

• 10.4"bonded color LCD provides clear view in any weather conditions

  Post-processing gain control applies to all existing returns on the display

  White Edge function trace the bottom contour with a thin white line

  FURUNO Digital Filter delivers crystal clear target presentation

  FURUNO Free Synthesizer transceiver allows adjustable operating frequency

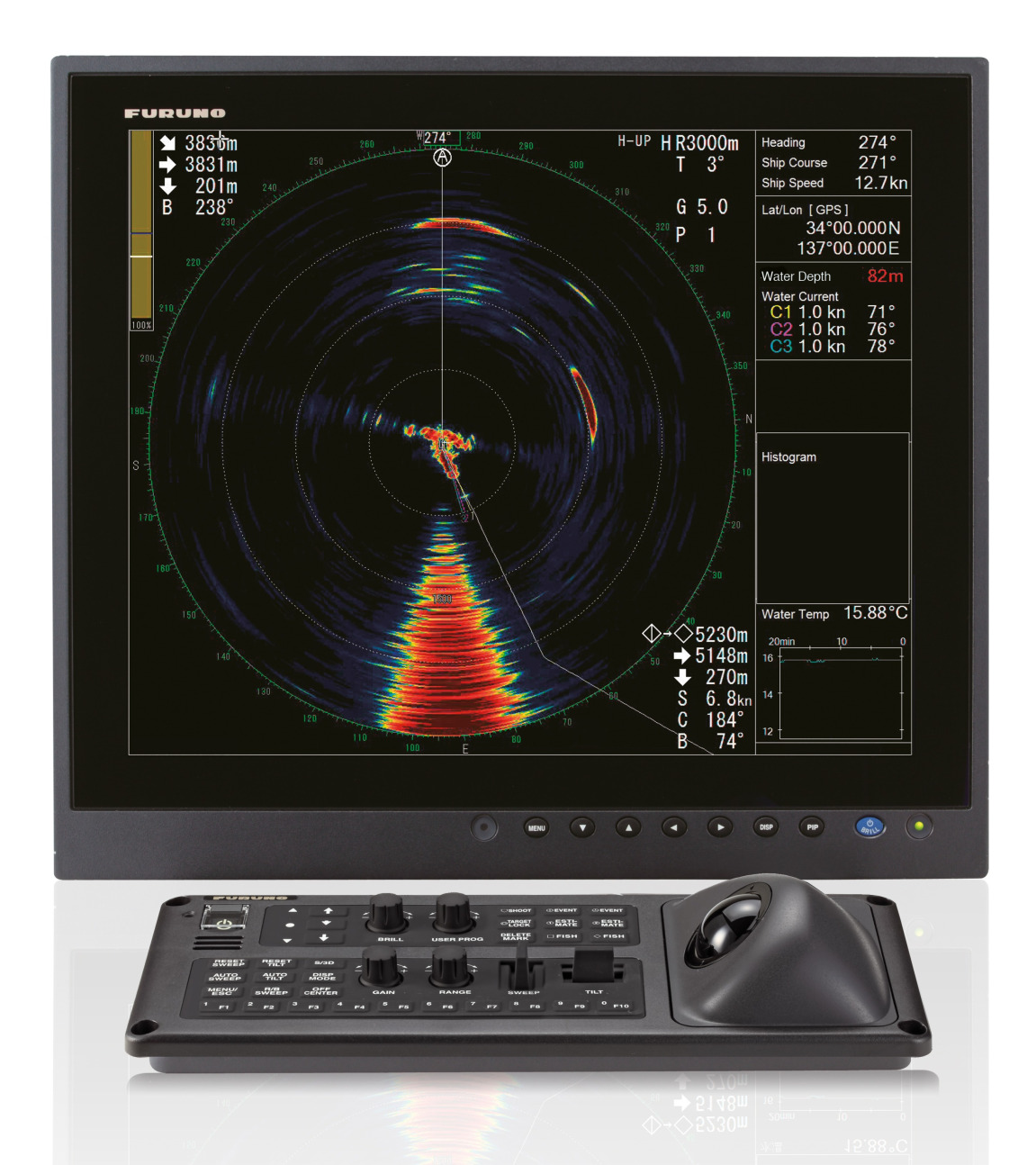

Next-Level Performance & Amazing Range With The FSV-25 MARK-2

The FSV Scanning Sonars have long been favorite among commercial fishermen as they provides reliable and consistent detection of fish and seabed conditions with revolutionary, enhanced signal processing technology.

• NEW Features coming with FSV-25 Mark-2

  [Fish Mark 2] newly added. Maximum of 20 fish marks can be entered per mark type

  New Control Unit and Remote Controller for quick and easy operation

  Export of echo data to TZ Professional software
  Learn more about TZ Professional at https://mytimezero.com/

• Fully extend the transducer in just 12 seconds for 1200 mm stroke and in 16 seconds for 1600 mm stroke

  A transducer “throw” time of just 12/16 seconds (respectively) places the FSV-25 MARK-2 among one of the fastest hull units available. You can extend and retract the transducer rapidly for smooth operation.

• Extended detection range to identify schools of fish at great distances

  Thanks to recent advancements in low-frequency transducer elements, signal processing and increased transmission power, the detection range has been greatly improved (by about 30%) with the FSV-25 and FSV-25 MARK-2 series. You can instantly spot and follow schools of fish from several kilometers away.

• Automatic target lock function for easy tracking of fast-swimming fish

  FSV-25 MARK-2 will automatically lock onto schools of fish, and display estimates of distance, depth, speed and angle of movement. Target lock is also available for stationary positions (speed and heading information required).

• Graphical hull-unit indicator

  See exactly how much the transducer is lowered directly on your display with a simple graphical interface. Instantly spot if and how much the transducer is lowered or retracted, helping you avoid accidents and increase safety at sea.

• Beam stabilization function for unwavering performance

  The beam stabilizer ensures that echoes are stable when received, regardless of transducer attitude, counteracting the rolling and pitching motions at sea.

• Wired Remote and Sub Control Unit available

• Stop function when extending and retracting transducer

  In order to avoid collisions with drift wood and other material, the transducer can be lowered to the desired position.

• Echo strength distribution histogram
• Auto filter for clear and uninterrupted performance

• 3D Sonar Visualizer™ F3D-S (Optional Application)

  3D Sonar Visualizer™ F3D-S is a new product that works in conjunction with the FSV-25 MARK-2 to show fish and sonar information in 3 dimensions. It uses the hull unit of your existing sonar but then processes the information in a unique way to show fish, peaks and sea floor data in a 3 dimensional "real world" view. Clearly see the size and shape of midwater marks to assess the best way to fish them and, with careful adjustment of the simple depth line control delete the seabed echoes to visualize fish schools close to the seabed.
